PACCAR MX11 & MX13 ECU Banana Plug Test Leads – Set of 5

MX11 / MX13 ECU Banana Plug Test Lead Kit

The MX11 / MX13 ECU Banana Plug Test Lead Kit is designed for technicians performing bench testing or on-engine diagnostics for Paccar MX11 and MX13 ECUs. This custom test lead set allows secure banana jack connections to diagnostic equipment for reliable ECU power and signal testing.

If you’re searching for:

• MX13 ECU test leads

• MX11 ECU bench testing cables

• Paccar MX13 banana plug test kit

• ECU banana jack test leads

• MX13 diagnostic test harness

This kit provides a professional-grade solution.

Designed for Bench & Engine Testing

This custom test lead configuration allows technicians to:

• Power MX11 or MX13 ECU modules on the bench

• Perform signal testing through banana jack equipment

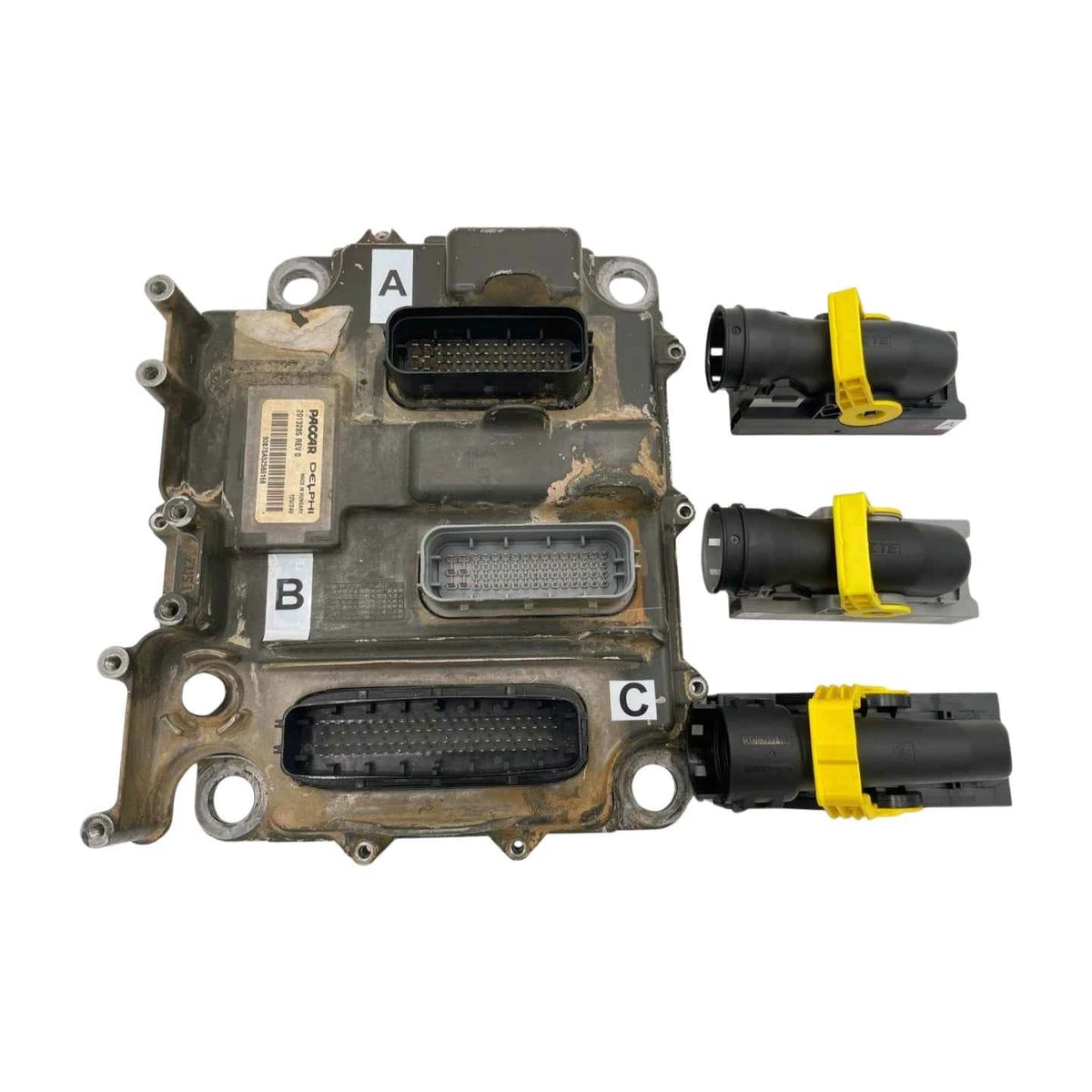

• Safely test Connector A and Connector B power pins

• Conduct controlled ECU diagnostics

Whether you're testing a removed ECU or troubleshooting on-engine issues, this kit simplifies secure electrical connections.

What’s Included

This configuration includes:

• 5 Premium Quick Disconnect Banana Plugs

  • Colors: Red, Black, Green, Yellow, White

• 2x 18 AWG wires per color with respective socket connector

• 2x Red 14 AWG wires for testing Connector A & B power pins

• 2x Green 14 AWG wires for testing Connector A & B power pins

Selectable wire length:

• 3 ft

• 5 ft

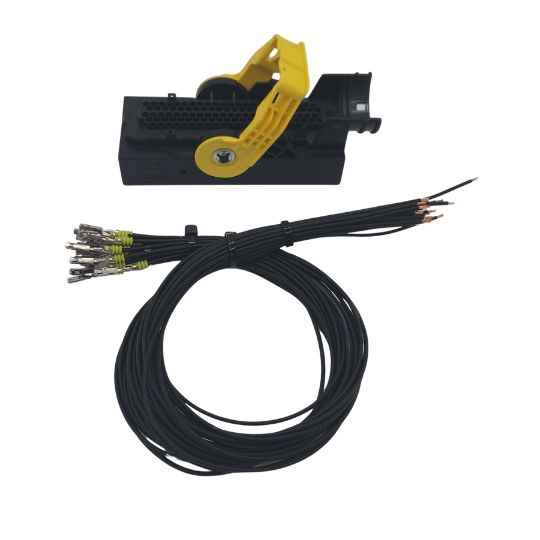

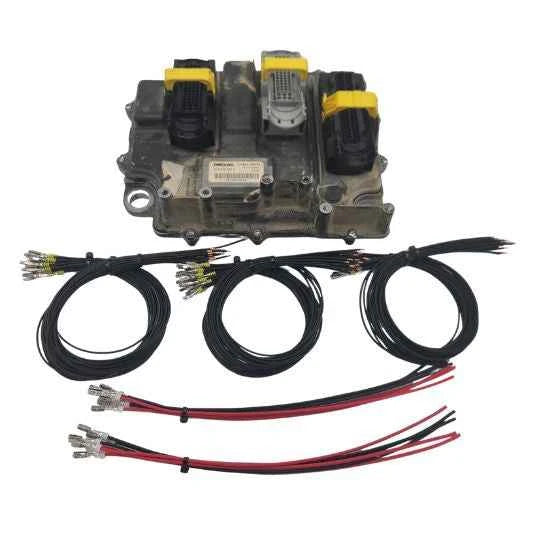

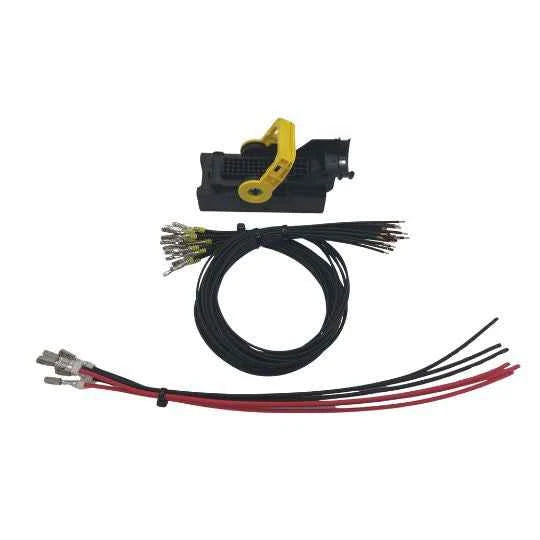

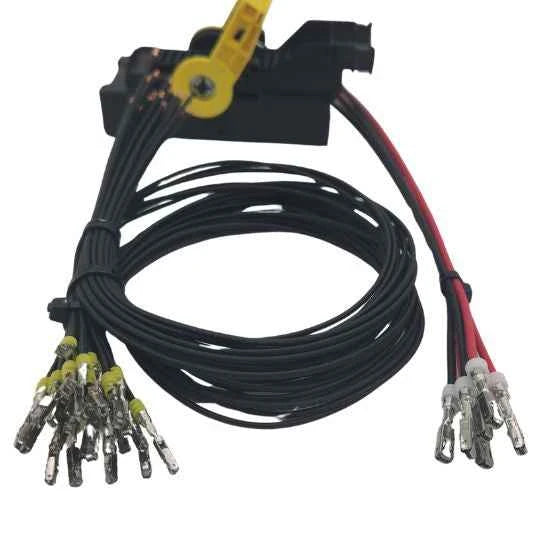

Note: Example images may show alternate configurations (such as 10-wire sets or extended lengths).

ECU is NOT included.

Built for Professional Diesel Diagnostics

This MX13 ECU test cable set is designed for durability and repeat use in shop environments. The 14 AWG power leads provide proper current handling for ECU power testing, while 18 AWG leads allow precise signal connections.

Color-coded wiring improves organization and reduces mis-identification during complex diagnostic procedures.

Key Features

• Designed for MX11 & MX13 ECU testing

• Compatible with banana jack diagnostic equipment

• Bench and on-engine testing capable

• Quick disconnect banana plugs (5 colors)

• Includes 14 AWG power leads

• Available in 3 ft or 5 ft lengths

• Ideal for diesel technicians and repair facilities

Why Use Dedicated ECU Test Leads?

Improvised test wires can lead to:

• Poor connections

• Misdiagnosed faults

• Damaged ECU pins

• Unsafe power application

Using a proper ECU banana plug test lead kit improves safety, accuracy, and efficiency during diagnostics.
