Diesel Electronic Supply

MCM Control Module Repair Kits

MCM Control Module Repair Kits

$280.00
$280.00
Sale Sold out
Shipping calculated at checkout.
Connectors

Detroit Diesel MCM2.1 120-Pin Connector Repair Kit / Pigtail

Product Overview

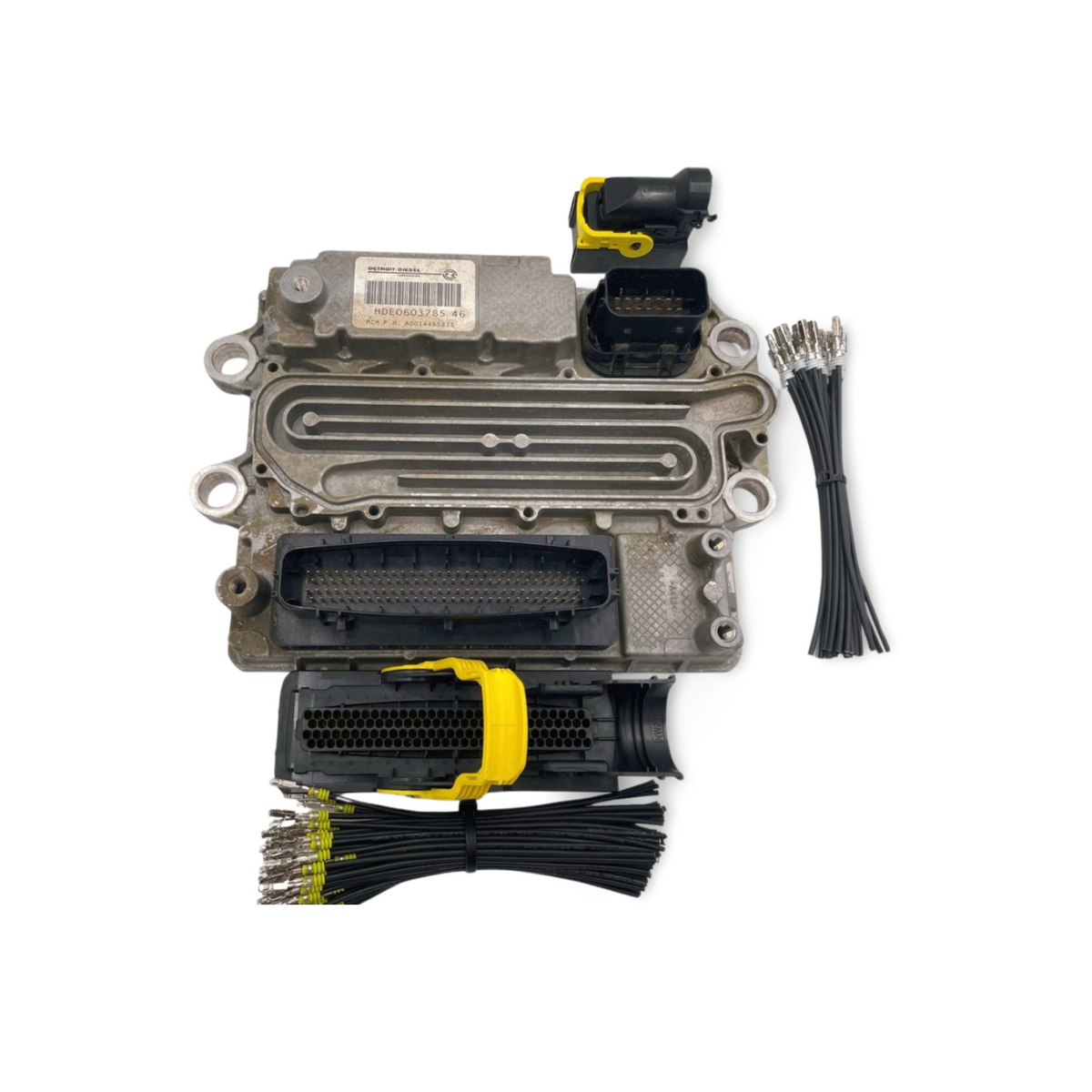

The Detroit Diesel MCM2.1 120-Pin Connector Repair Kit is designed to replace damaged or failed connectors on Detroit Diesel Motor Control Modules (MCM2.1). This kit allows technicians to repair the connector portion of the harness without replacing the complete engine harness assembly.

It is commonly used when connectors are corroded, cut, melted, or damaged from vibration or previous repairs. By replacing only the connector, you reduce repair time, lower costs, and return the unit to service faster.

Direct Replacement / Cross Reference

This connector repair kit is compatible with the following Detroit Diesel MCM2.1 part numbers:

Primary MCM2.1 Part Numbers:

  • DDE RA0024460135
  • RA0024460135
  • A0024460135
  • 0024460135

Additional Compatible Part Numbers:

  • DDE EA0004467635
  • RA0004467635
  • A0004467635
  • 0004467635
  • DDE EA0004466035
  • RA0004466035
  • A0004466035
  • 0004466035

Replaces / Equivalent To:

  • 0001531422 Connector Repair Kit / Pigtail

Engine Platform Compatibility

This kit is commonly used on:

  • Detroit Diesel DD13
  • Detroit Diesel DD15
  • Detroit Diesel DD16

If your MCM matches one of the part numbers listed above, this connector kit will fit your application.

Kit Contents

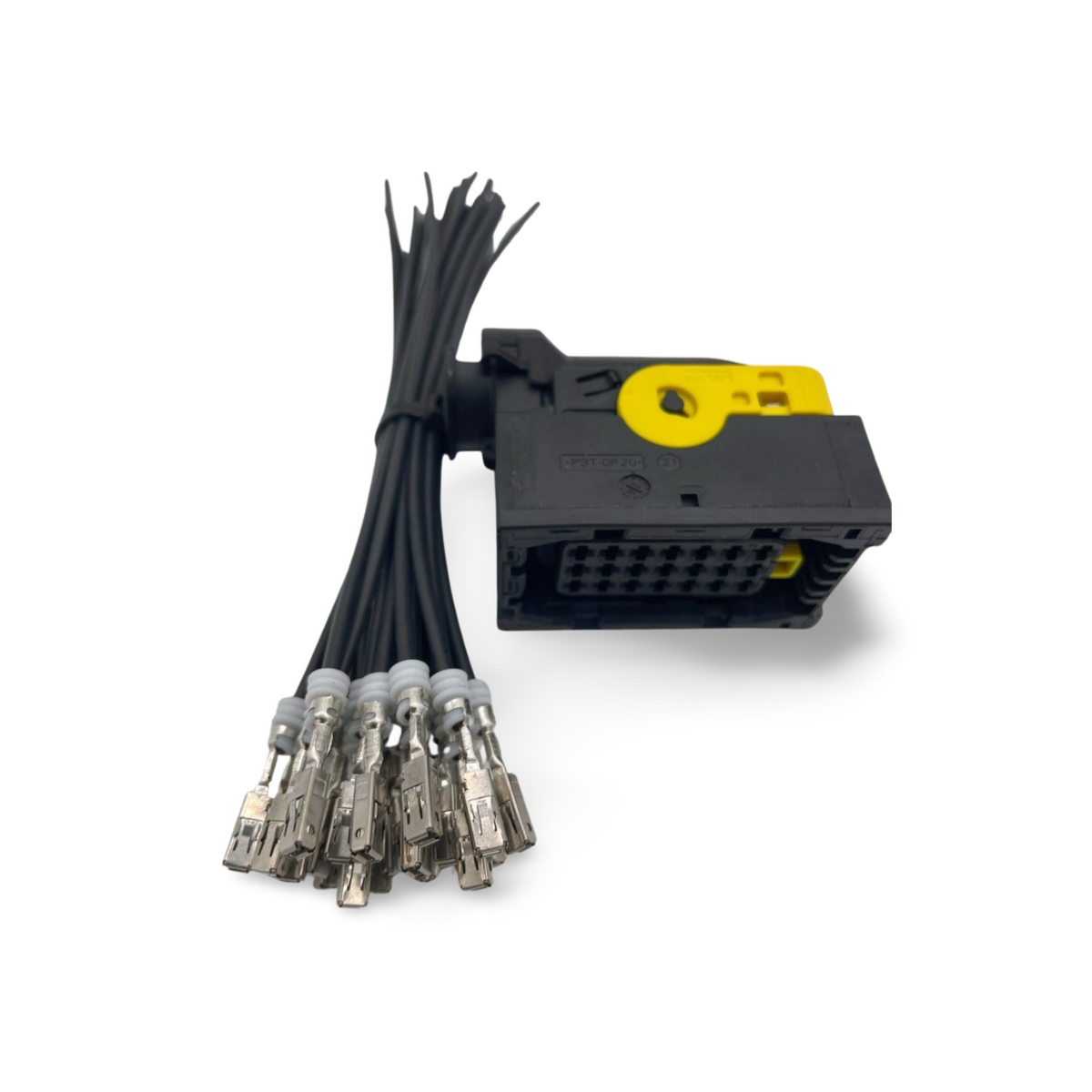

  • 1 × 120-Pin Connector Housing (MCM2.1)
  • 120 × Pre-Crimped Wires with Seals
    • Approx. 12 inches (30 cm) length
    • Pre-installed weather seals

All terminals are pre-crimped to help reduce installation time and maintain consistent connections.

Application & Use Case

Use this repair kit when experiencing:

  • Damaged or broken connector housing
  • Corroded, bent, or pushed-out pins
  • Intermittent electrical connection issues
  • CAN communication faults
  • No-start conditions or engine derates

This kit allows you to repair only the connector side instead of replacing the entire harness.

Common Search Terms

  • Detroit Diesel MCM 120-pin connector
  • MCM2.1 connector pigtail
  • DD15 MCM connector repair
  • DDE 0024460135 connector
  • Detroit Diesel connector repair kit
  • 0001531422 pigtail

Important Note

⚠️ This product includes the connector housing and wires only.
It does not include the MCM (Motor Control Module) or ECU header.
