JLG Smart Controller Harness Repair Kit (J1 15-Pin & 2-Pin)

JLG Smart Controller Harness Repair Kit – J1 15-Pin & 2-Pin Connector

The JLG Smart Controller Harness Repair Kit is designed to repair damaged connectors at the J1 location on JLG scissor lifts equipped with Smart Controllers (P/N: 1600289). If your harness connector has been cut, corroded, or damaged, this kit provides a reliable solution without replacing the entire wiring harness assembly.

Commonly searched as:

• JLG scissor lift harness repair kit

• JLG Smart Controller connector repair

• JLG 1600289 connector replacement

• JLG J1 connector repair

• JLG 15 pin connector repair

• JLG 2 pin harness connector

This kit allows technicians to restore proper electrical connections quickly and efficiently.

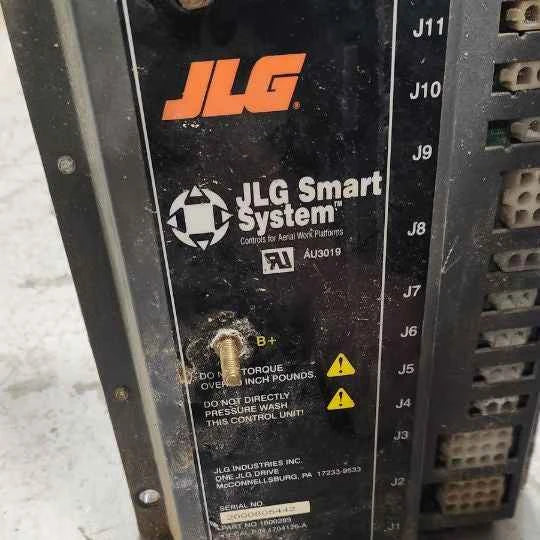

Compatible with JLG Smart Controller P/N: 1600289

This harness repair kit is specifically compatible with:

• JLG Smart Controller

• Part Number: 1600289

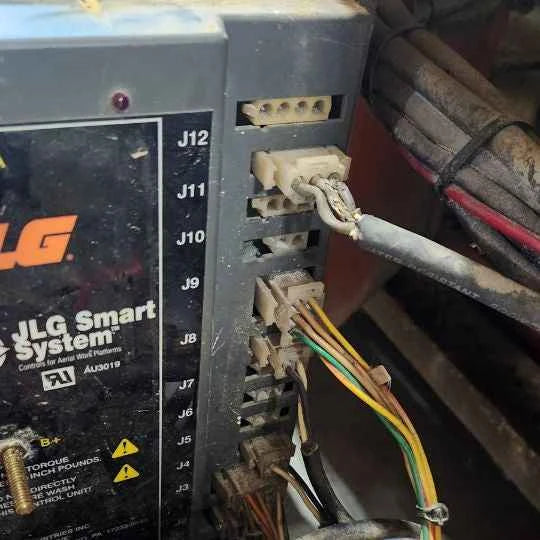

• J1 connector location

It supports repair of the 15-pin main connector (12-position housing) along with the associated 2-pin connector.

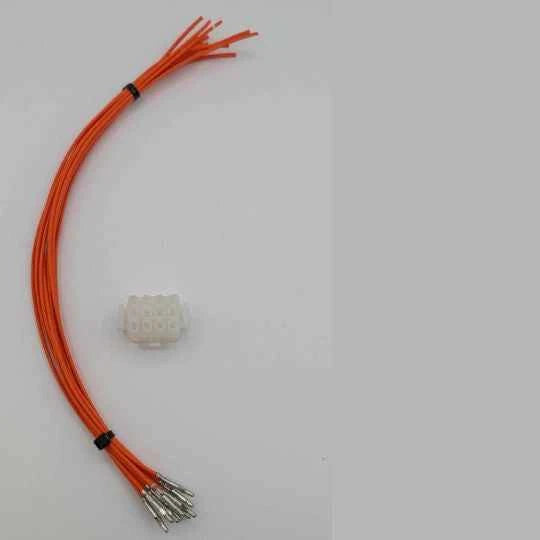

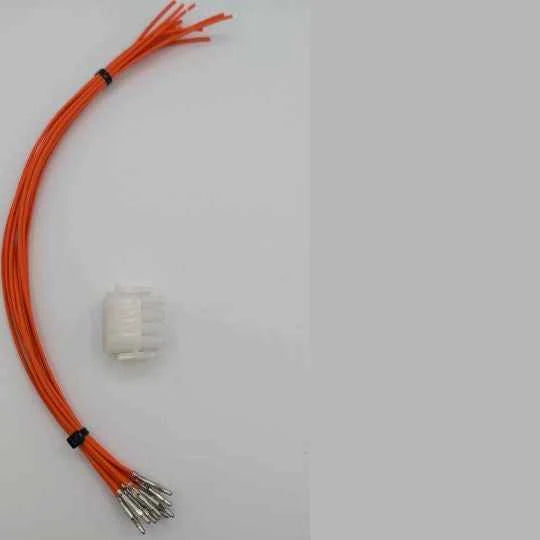

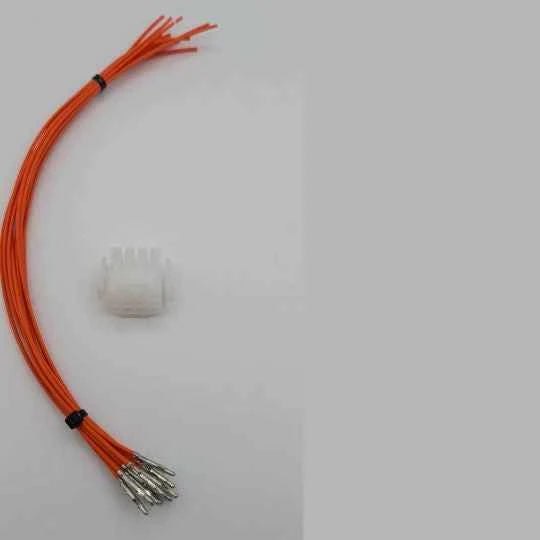

What’s Included in the Kit

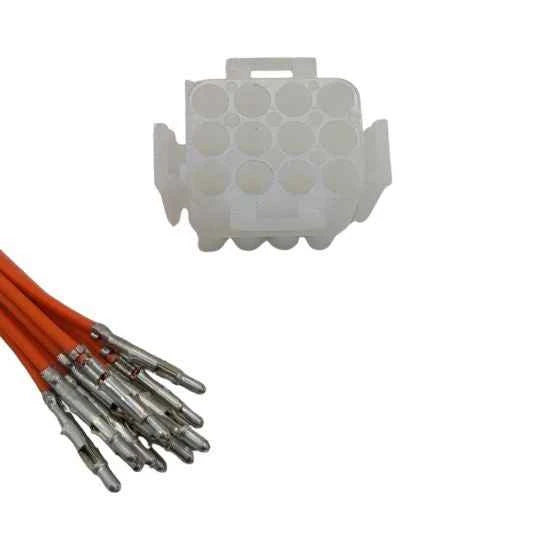

• 1x 12-Position Connector Housing

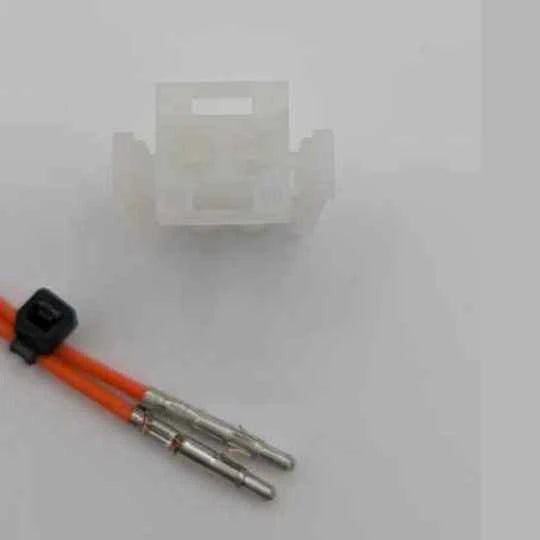

• 1x 2-Position Connector

• 14x Pre-Crimped Wires (1 FT each)

Each wire is pre-crimped with the correct terminal and ready for splicing into the existing harness, reducing installation time and eliminating the need for specialized crimp tools.

Designed for Scissor Lift Electrical Repairs

Electrical issues in aerial lift equipment can cause:

• Controller communication faults

• Lift operation failures

• Error codes

• Downtime on job sites

This JLG harness repair kit provides a cost-effective alternative to full harness replacement, helping technicians get equipment back in service faster.

Built for Equipment Environments

The connectors and wiring are designed to withstand:

• Vibration

• Outdoor job site conditions

• Moisture exposure

• Repeated operation cycles

This makes the kit suitable for professional equipment repair shops and fleet maintenance operations.

Key Features

• Designed for JLG scissor lift applications

• Compatible with Smart Controller P/N 1600289

• Supports J1 connector repair

• Includes 12-position and 2-position connectors

• 14 pre-crimped wires (1 FT each)

• Cost-effective harness repair solution

Important Note

This kit repairs the connector portion only and does not include the full harness assembly or Smart Controller unit.
