Freightliner CPC4 Harness Repair Kit

Complete CPC2 & CPC4 Connector Repair Solution

The CPC4 Harness Repair Kit from Diesel Electronic Supply helps repair damaged, cut, missing, or stolen CPC2 and CPC4 harness connectors without replacing the entire OEM wiring harness. As a result, truck owners and repair facilities can restore critical electrical connections while reducing repair costs and vehicle downtime.

Replacing a complete harness assembly can be expensive, time-consuming, and difficult to source. Instead, this kit provides the components needed to repair the damaged connector area and get your truck back on the road quickly. Whether you're performing a fleet repair or restoring a single truck, this kit offers a practical solution for CPC connector repairs.

Important Product Information

⚠ CPC2 / CPC4 Control Module Not Included

This listing includes the connector repair kit only.

The CPC2 or CPC4 Control Module is NOT included and is sold separately.

This kit helps repair damaged, cut, missing, or stolen CPC harness connectors and wiring. However, it does not include the control module itself.

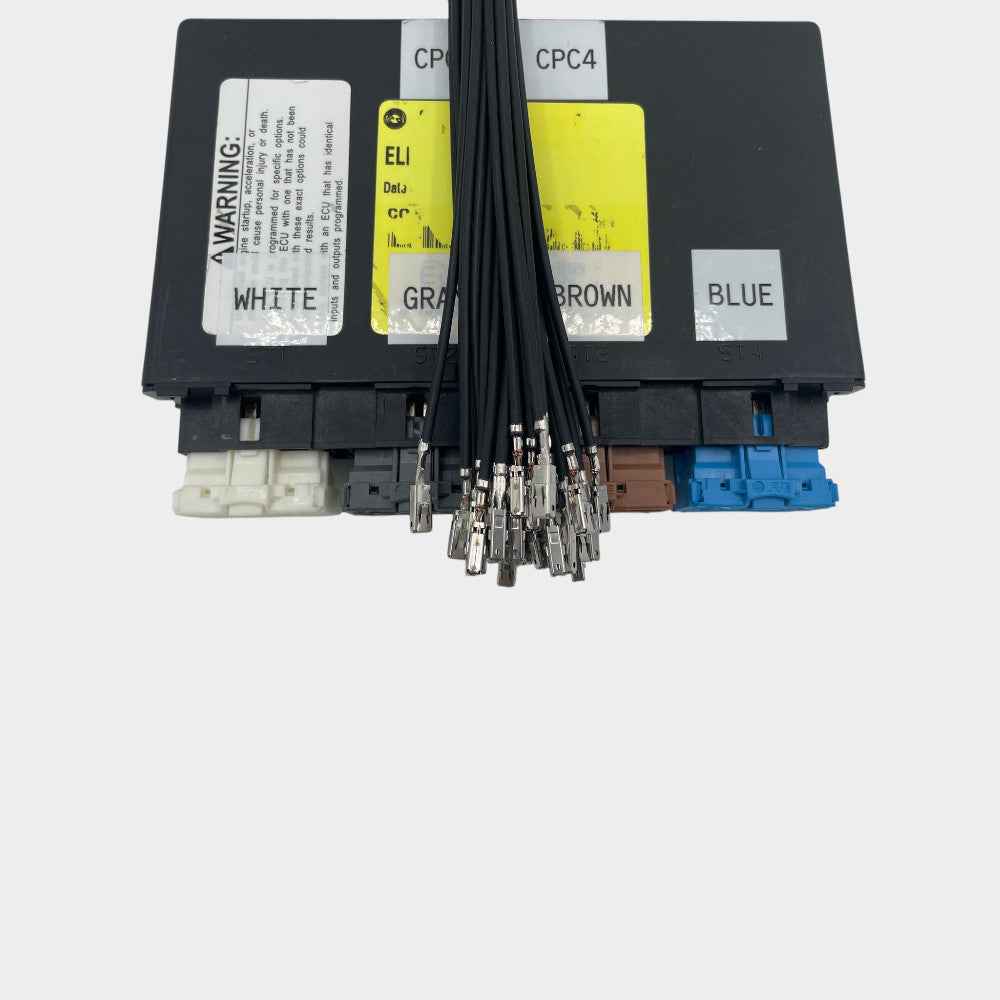

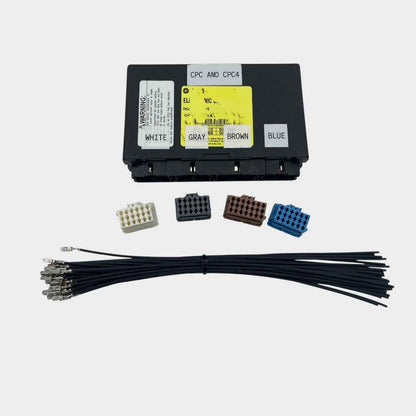

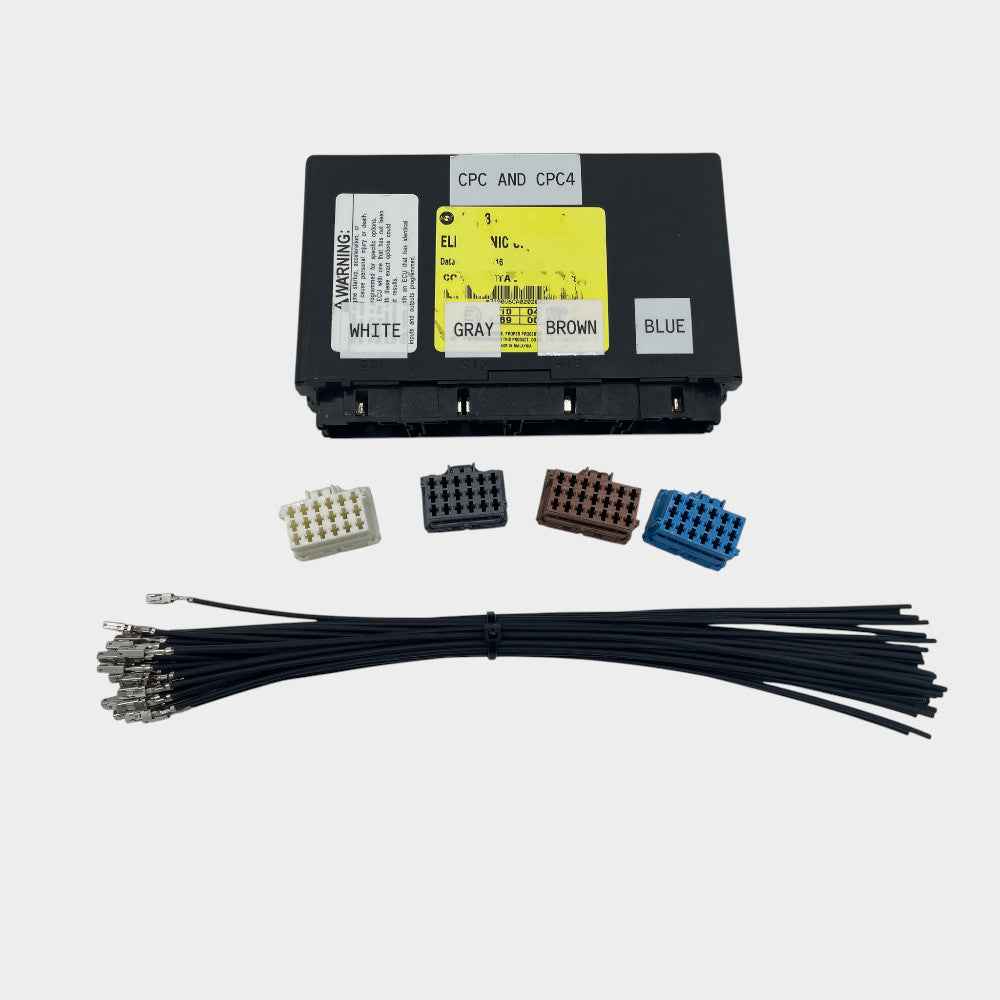

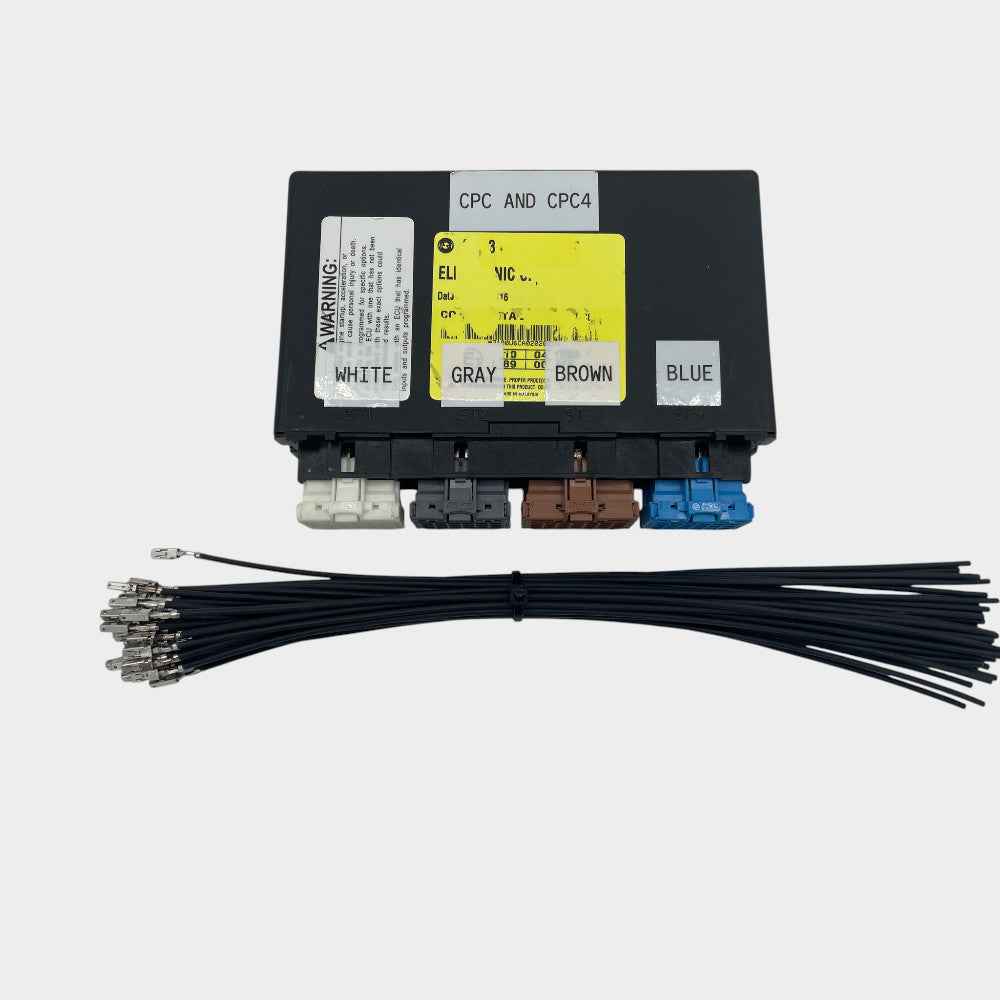

What's Included

Each kit includes:

• (1) White Connector
• (1) Grey Connector
• (1) Brown Connector
• (1) Blue Connector
• Pre-crimped 18 AWG TXL automotive-grade wires
• Approximately 12-inch wire leads
• Stripped wire ends ready for splicing
• CPC2 and CPC4 pinout reference information
• Connector population instructions

Features & Benefits

Complete Harness Repair Solution

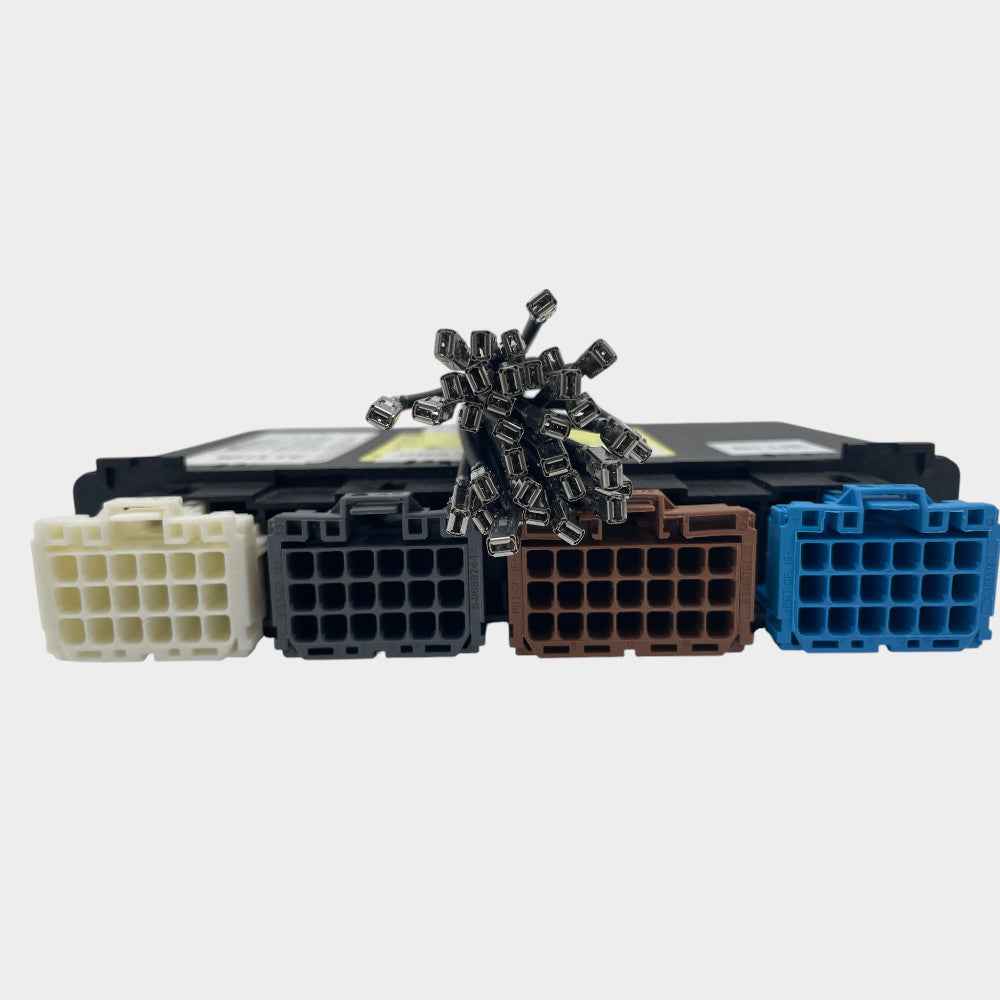

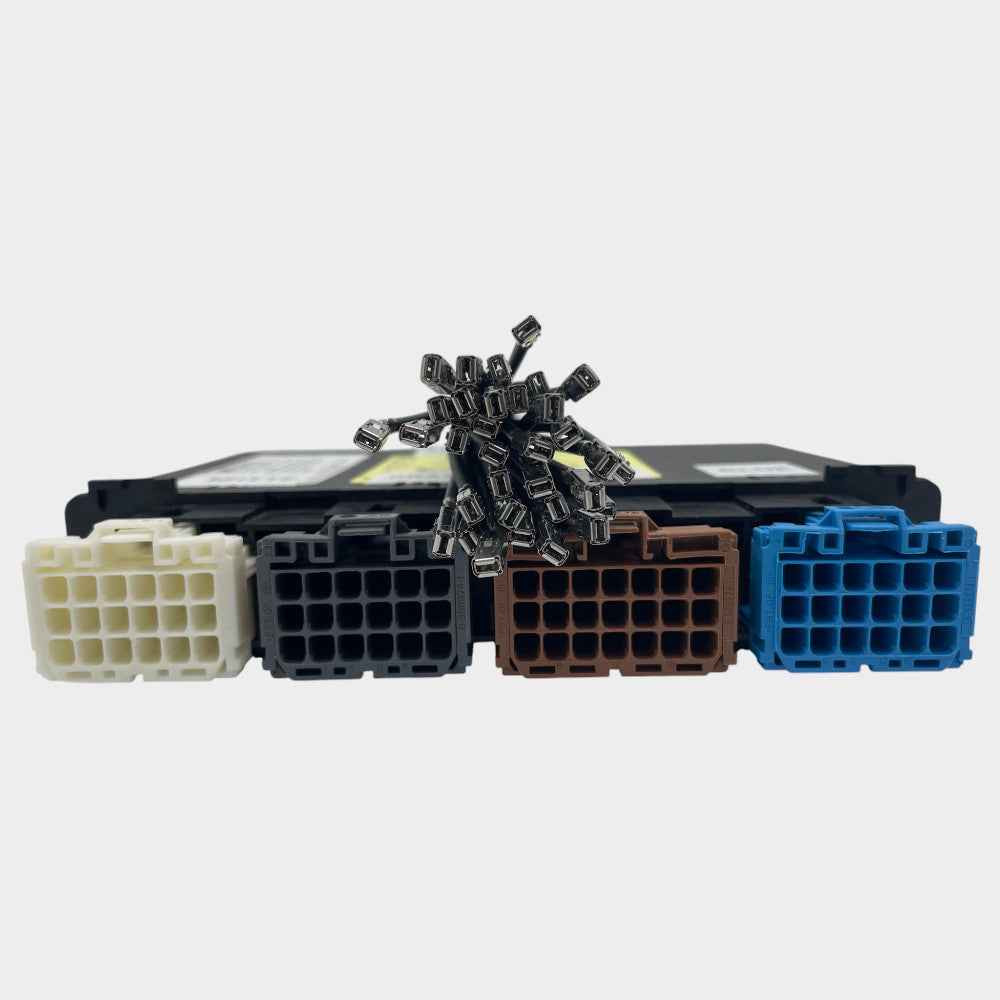

This kit includes the four primary connector housings used on CPC2 and CPC4 modules. Therefore, installers can quickly replace damaged or missing connector assemblies without replacing the entire harness.

Pre-Crimped Terminals Included

Each wire includes a pre-crimped terminal. Consequently, installers can save time and avoid purchasing specialized crimping tools.

Automotive-Grade TXL Wire

We use durable 18 AWG TXL automotive wire designed for heavy-duty truck environments. As a result, the repair can withstand vibration, temperature changes, and demanding operating conditions.

Pinout Information Included

We provide CPC2 and CPC4 pinout reference information to assist with connector population and cavity identification. In addition, the supplied documentation helps installers verify connector locations before making repairs.

Cost-Effective Alternative to OEM Harness Replacement

OEM harness replacements can be expensive. Fortunately, this repair kit allows you to replace only the damaged connector section, which helps reduce downtime and repair costs.

Compatible Applications

Repair facilities, fleet maintenance departments, and owner-operators commonly use this kit on:

• Freightliner Cascadia
• Freightliner Columbia
• Freightliner Coronado
• Freightliner Business Class M2
• Freightliner 114SD
• Freightliner 122SD

Additionally, this kit supports many applications utilizing:

• Detroit Diesel CPC2 Modules
• Detroit Diesel CPC4 Modules

Because vehicle configurations vary, always verify connector style and pinout requirements before ordering.

Installation Information

Because wiring configurations vary by truck model, year, engine, and application, installers must verify all wire locations before populating the connectors.

Therefore, review the supplied pinout information before beginning the repair. Next, identify each wire and confirm its cavity location before making any electrical connections.

If you are unfamiliar with wiring repairs or circuit tracing, consult a qualified technician. Doing so can help prevent wiring errors and unnecessary downtime.

Why Choose Diesel Electronic Supply?

Diesel Electronic Supply specializes in heavy-duty truck wiring harnesses, connector repair solutions, and hard-to-find electrical components.

For this reason, repair facilities, fleet maintenance departments, dealerships, and owner-operators trust Diesel Electronic Supply products throughout North America.

Whether you're repairing theft damage, corrosion, vandalism, accident damage, or a cut harness, this kit provides the components needed to complete the repair efficiently. Moreover, it offers a practical alternative to costly OEM harness replacement.

Looking for additional CPC solutions? Be sure to check out our:

• CPC4 Quick Release Mini™
• CPC4 Quick Release Harness™
• Bench Programming Harnesses
• Connector Repair Solutions

For additional Detroit Diesel service information, visit:

https://demanddetroit.com
