Ford Ignition Module Repair Kit – 23-Pin Connector | Part #1U1L-12A297-BA

The Ford Ignition Module Repair Kit (Part #1U1L-12A297-BA) quickly restores damaged or missing wiring harness connectors without requiring you to replace the entire OEM harness. Instead, this repair kit provides the correct 23-pin connector and pre-crimped wires, allowing technicians to complete repairs faster while maintaining reliable electrical connections.

Whether the original connector is cut, corroded, or damaged, this repair kit helps restore the factory fit and electrical performance while reducing repair costs.

What's Included

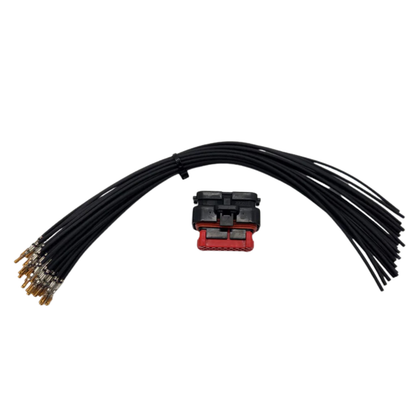

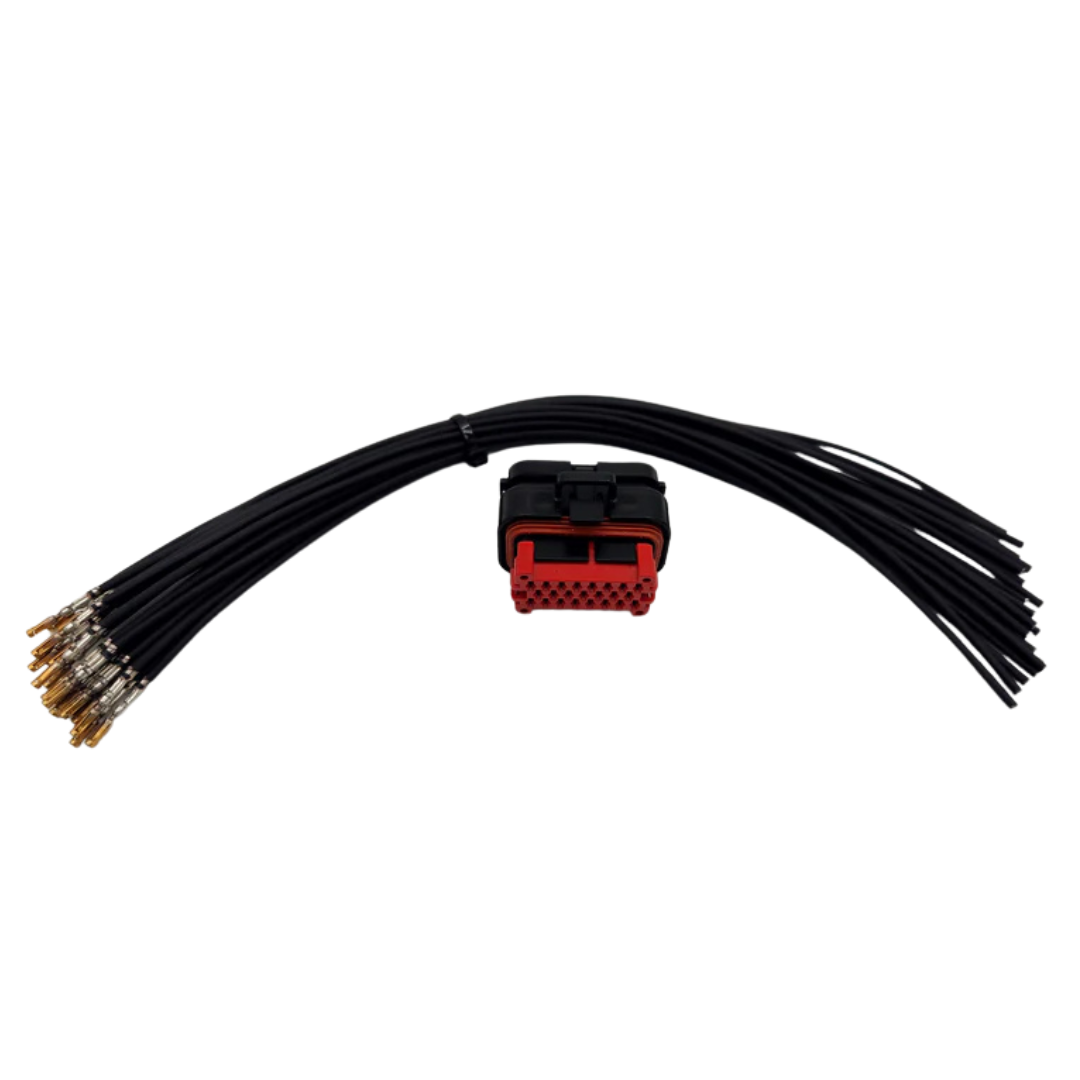

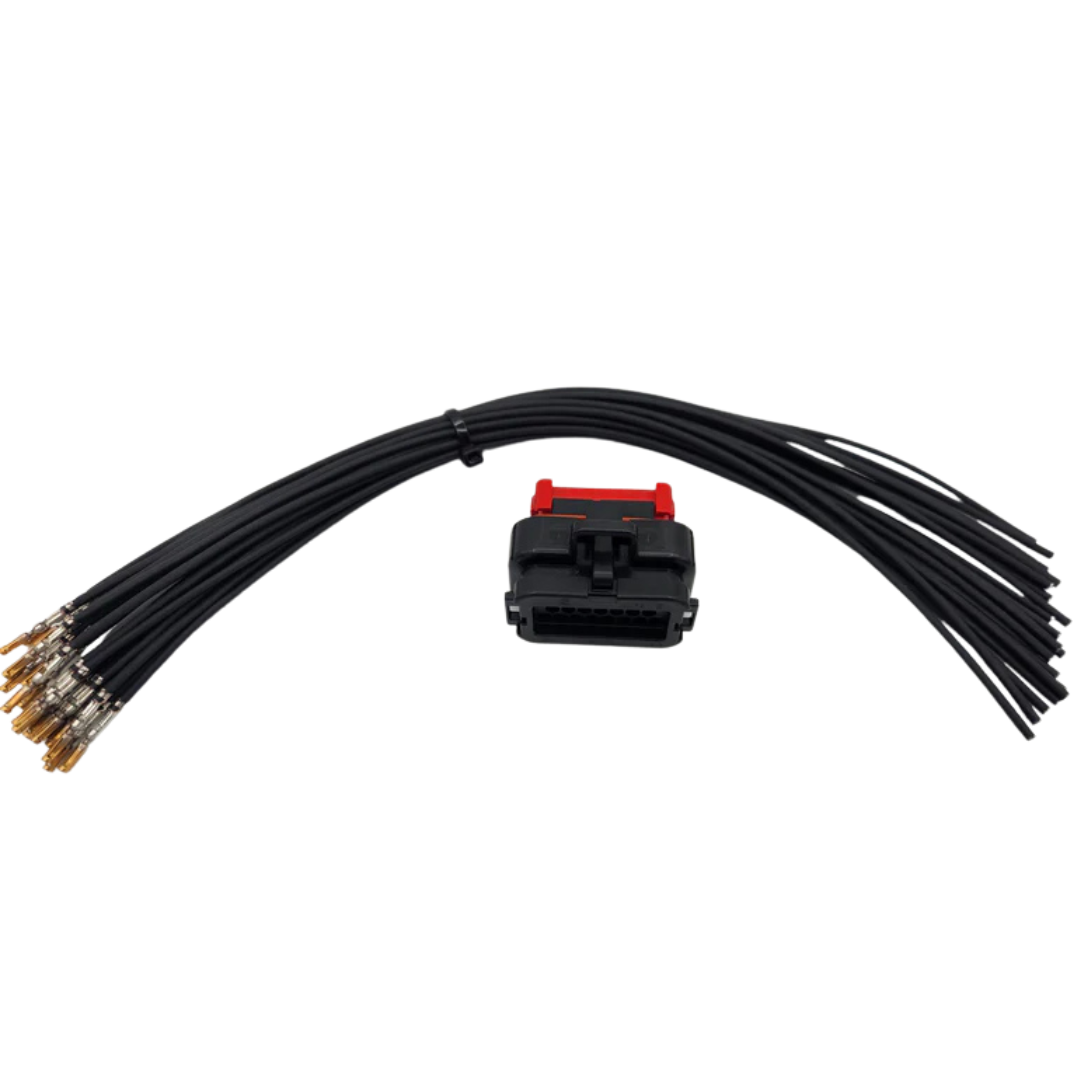

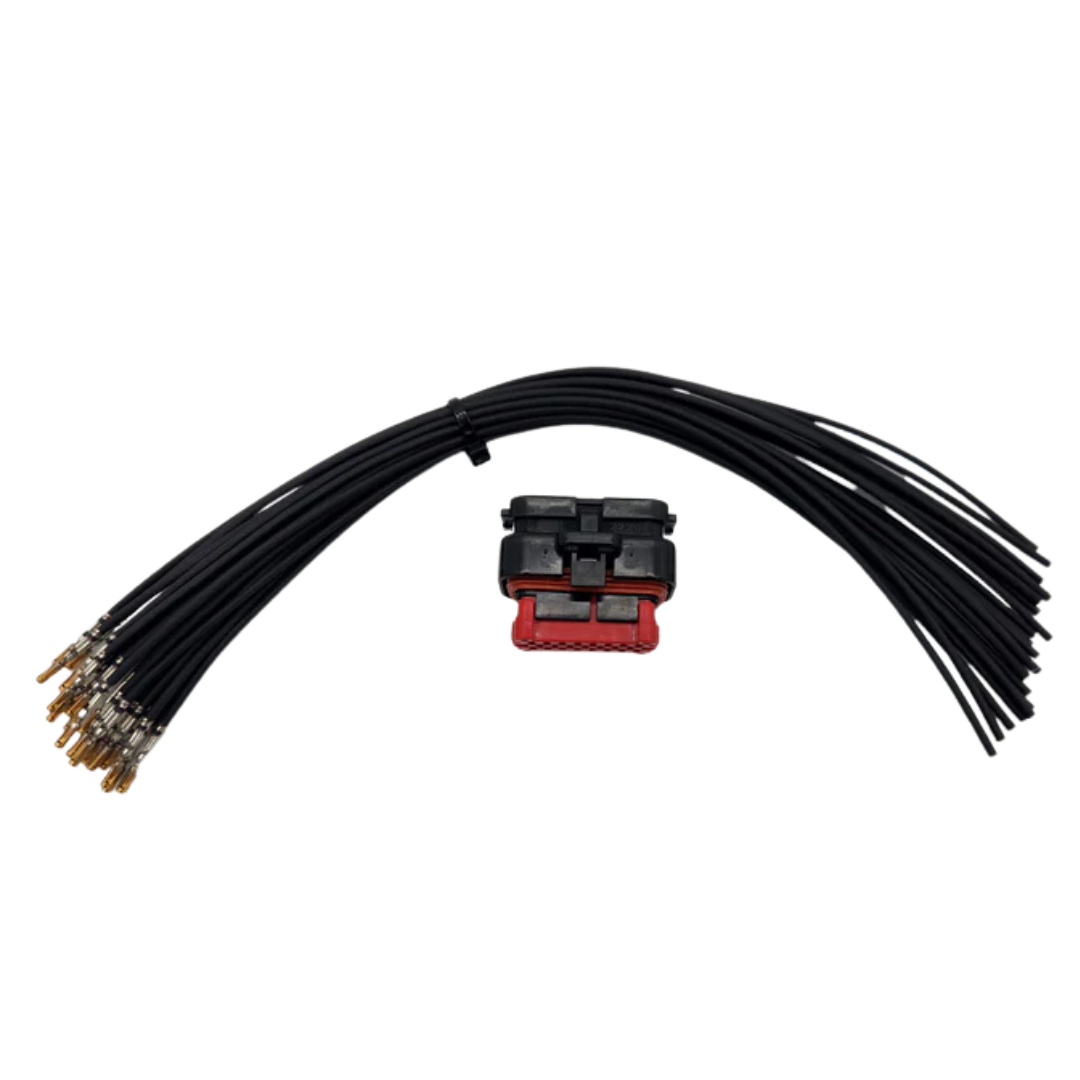

• 1 × 23-Pin Connector (Black/Red)

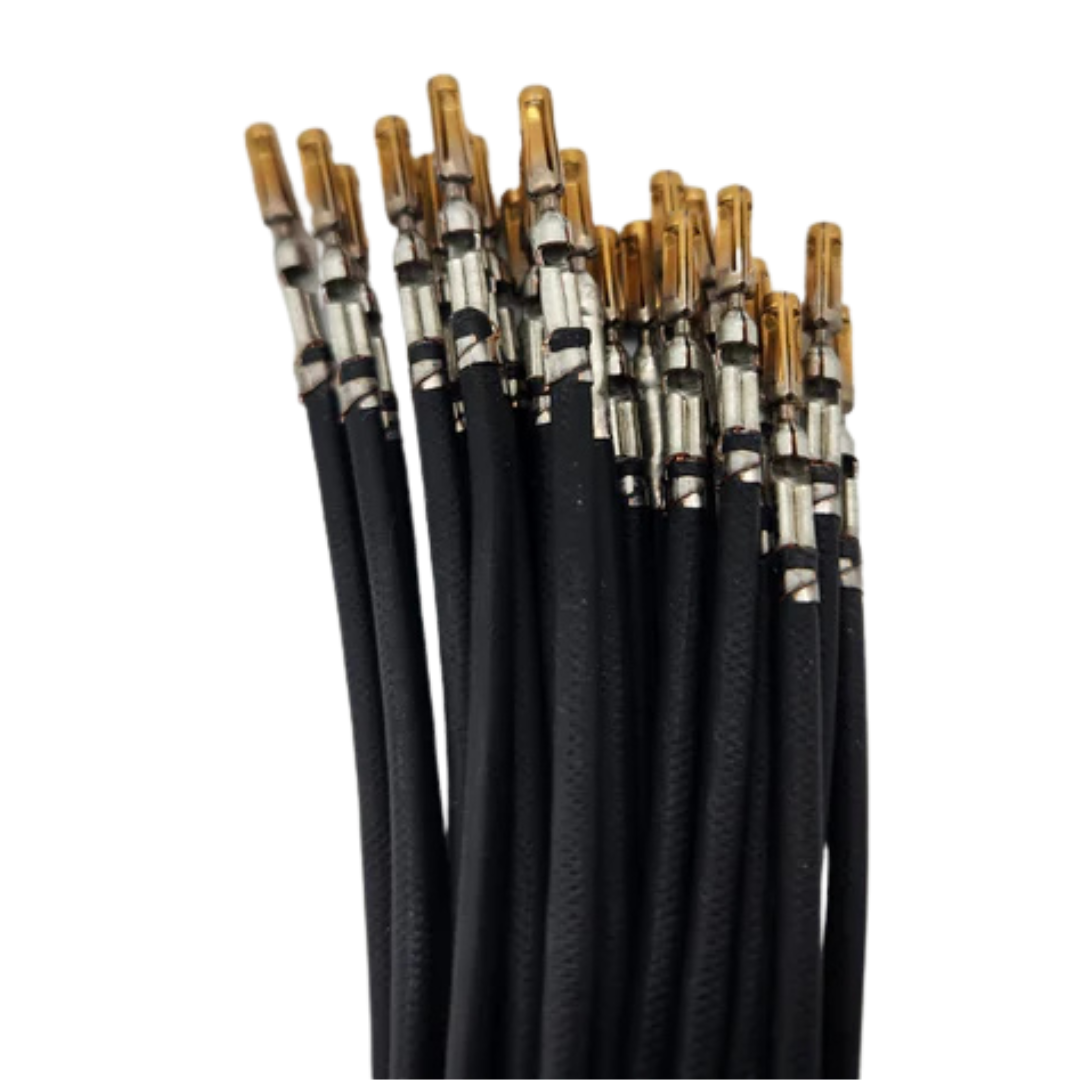

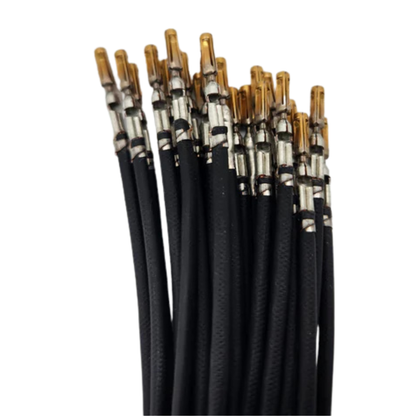

• 23 × Pre-Crimped Wires
• 18 AWG Premium GXL Automotive Wire
• 1-foot wire length for each circuit

Each wire comes pre-crimped with the correct terminal, so technicians can complete repairs without specialized crimping tools. Additionally, the extra wire length makes installation easier and provides flexibility during repairs.

Built for Reliable Ford Harness Repairs

This repair kit matches OEM connector part number 1U1L-12A297-BA and delivers an OEM-style fit for Ford ignition module harness repairs. Furthermore, the premium GXL automotive wire withstands heat, vibration, abrasion, and harsh under-hood conditions, helping ensure long-lasting performance.

Common Applications

Technicians commonly use this repair kit to:

• Repair damaged Ford ignition module wiring harnesses
• Replace broken, missing, or corroded 23-pin connectors
• Restore cut ECU wiring harness connectors
• Eliminate the expense of replacing a complete OEM harness
• Complete custom automotive wiring and restoration projects

Key Features

• Complete Ford Ignition Module Repair Kit
• Includes one Black/Red 23-pin connector
• 23 pre-crimped 18 AWG GXL automotive wires
• Matches OEM Part #1U1L-12A297-BA
• Creates secure, professional-quality electrical connections
• Reduces installation time and labor costs
• Offers a cost-effective alternative to replacing the entire wiring harness

Why Choose Diesel Electronic Supply?

Diesel Electronic Supply manufactures high-quality connector repair kits that help fleets, repair shops, dealerships, and technicians reduce downtime. In addition, we build every kit with premium automotive-grade components to deliver dependable performance and long service life.

Browse our complete selection of Ford connector repair kits and automotive wiring solutions to find the right repair for your application.

Important Note

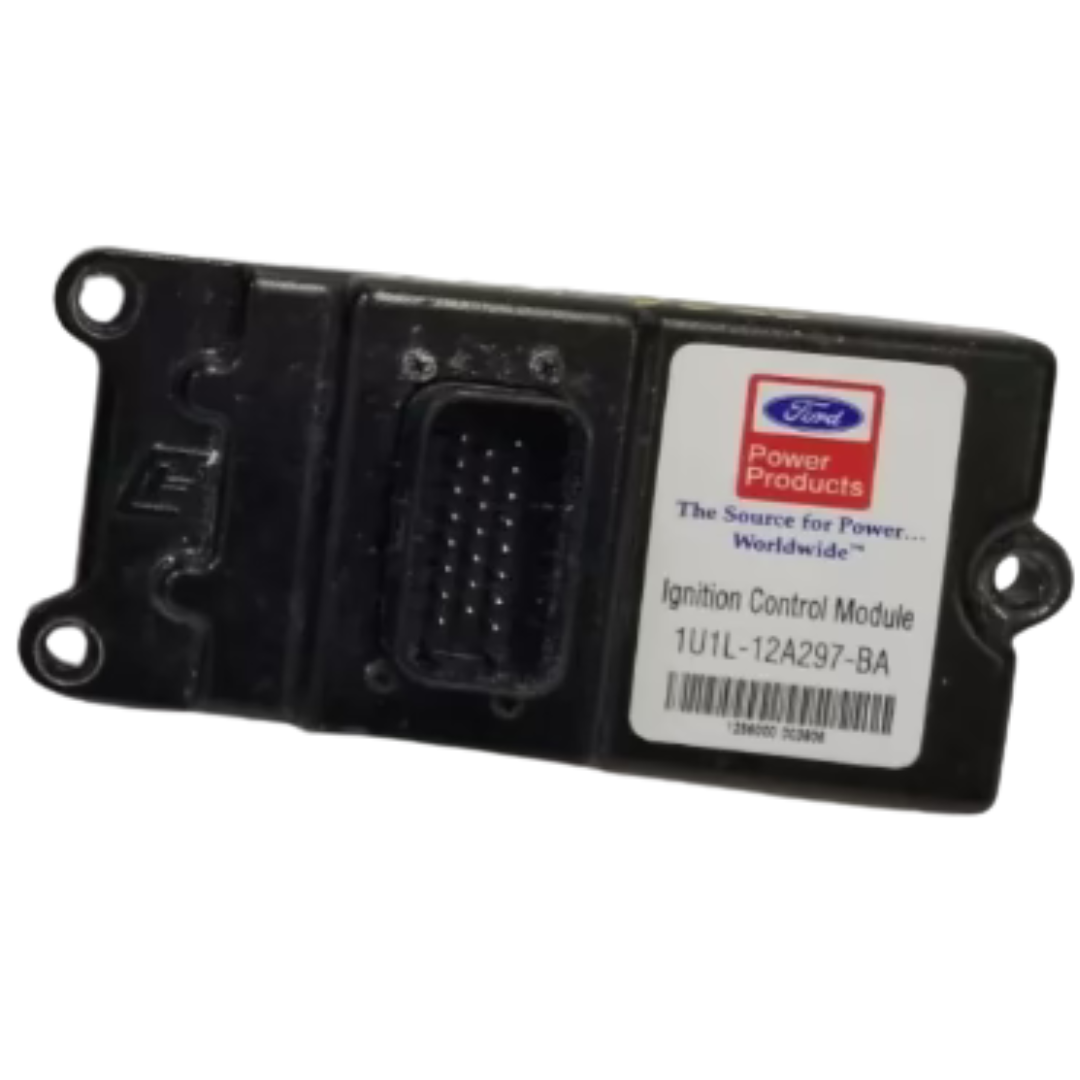

This product does not include the Ignition Control Module. It includes only the 23-pin connector housing and 23 pre-crimped wires required to repair the wiring harness.
