PACCAR MX13 ECM Diagnostic Test Lead Kit – 5 ft OEM-Style Leads
- Pre-crimped & ready to install
- Ships from Kernersville, NC
- Secure checkout
- Real tech support
Description
PACCAR MX13 Test Leads
Professional PACCAR MX13 Test Leads for ECM Diagnostics and Bench Testing

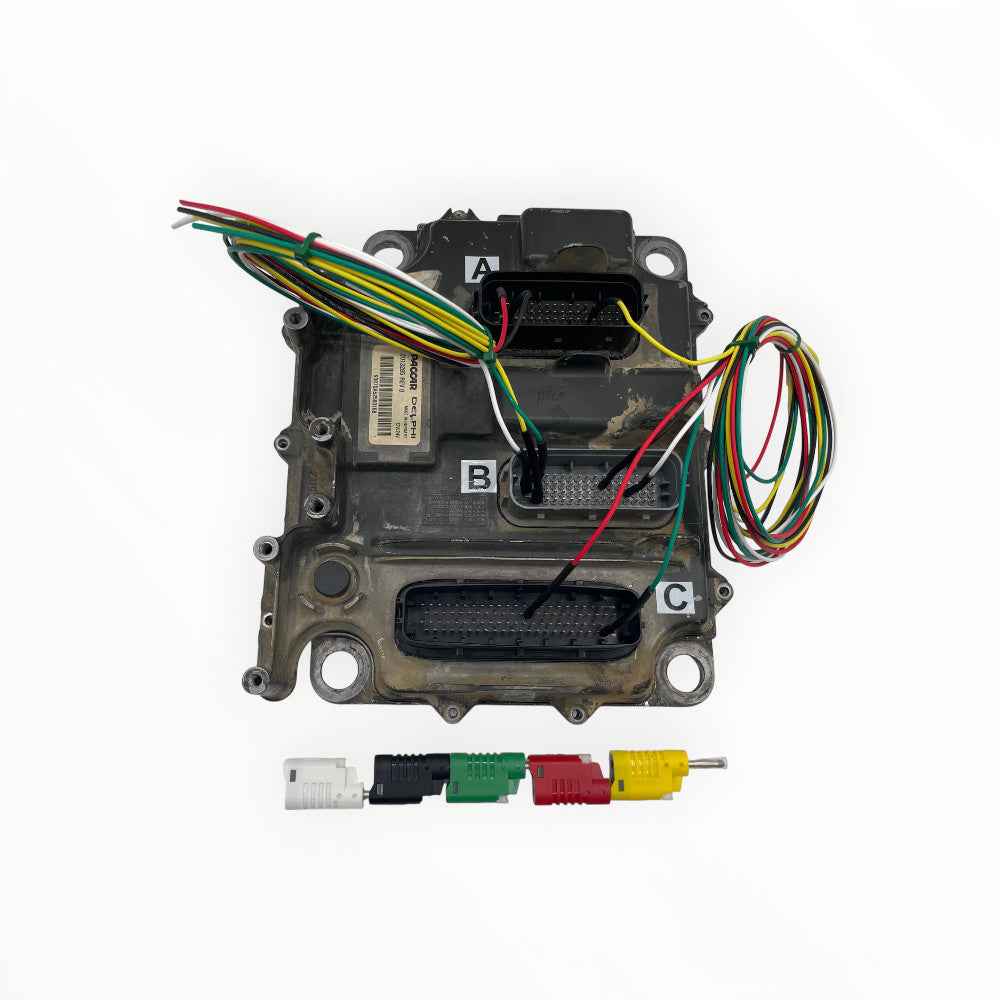

The PACCAR MX13 Test Leads Kit provides a professional solution for accessing ECM circuits during diagnostics, troubleshooting, programming, and bench testing. Designed with OEM-style contacts, these test leads properly interface with PACCAR MX13 ECM connectors without damaging factory terminals.
Instead of relying on back-probing methods or improvised test equipment, technicians can establish secure electrical connections directly at the ECM. As a result, testing becomes more accurate, more efficient, and less likely to damage expensive connector terminals.
Whether you're troubleshooting an engine fault, verifying sensor inputs, monitoring communication circuits, or building a custom test bench, this kit offers a reliable diagnostic solution.

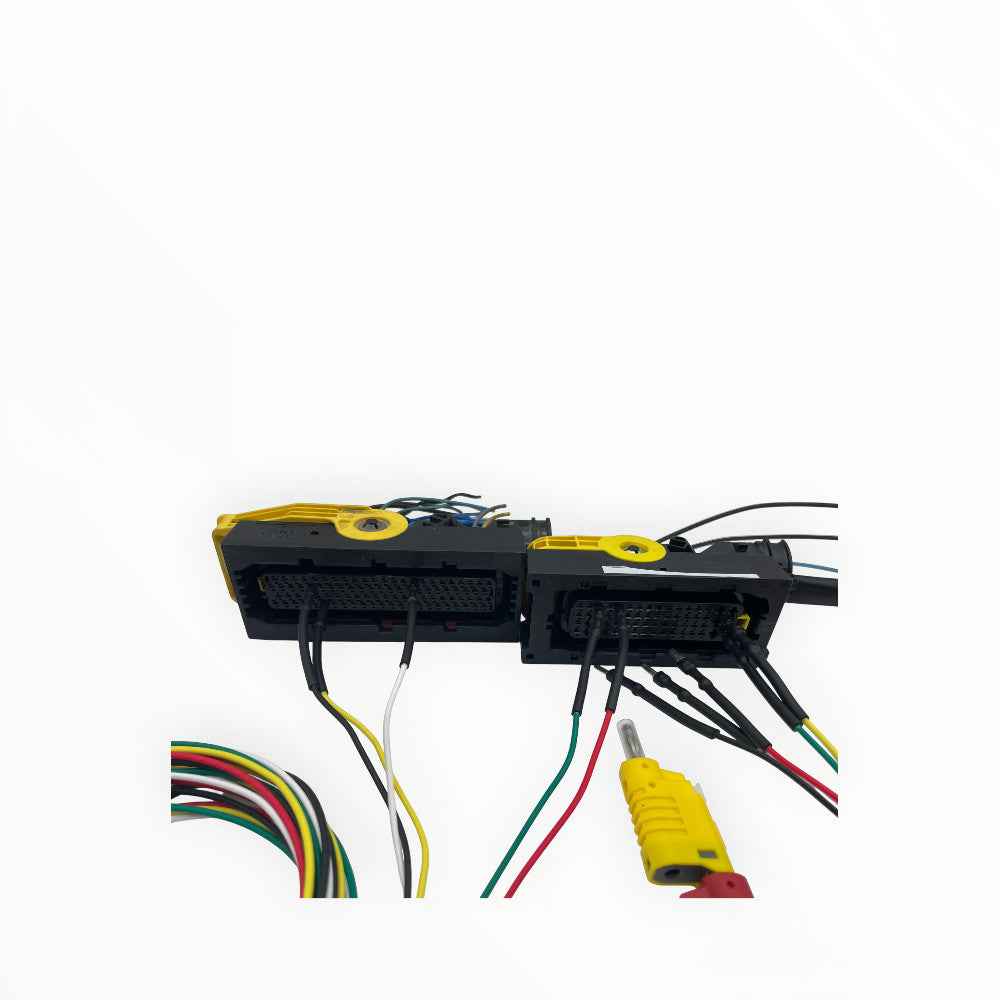

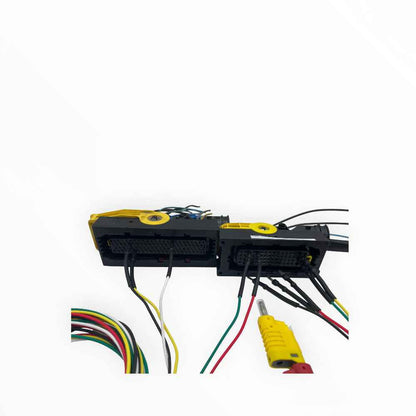

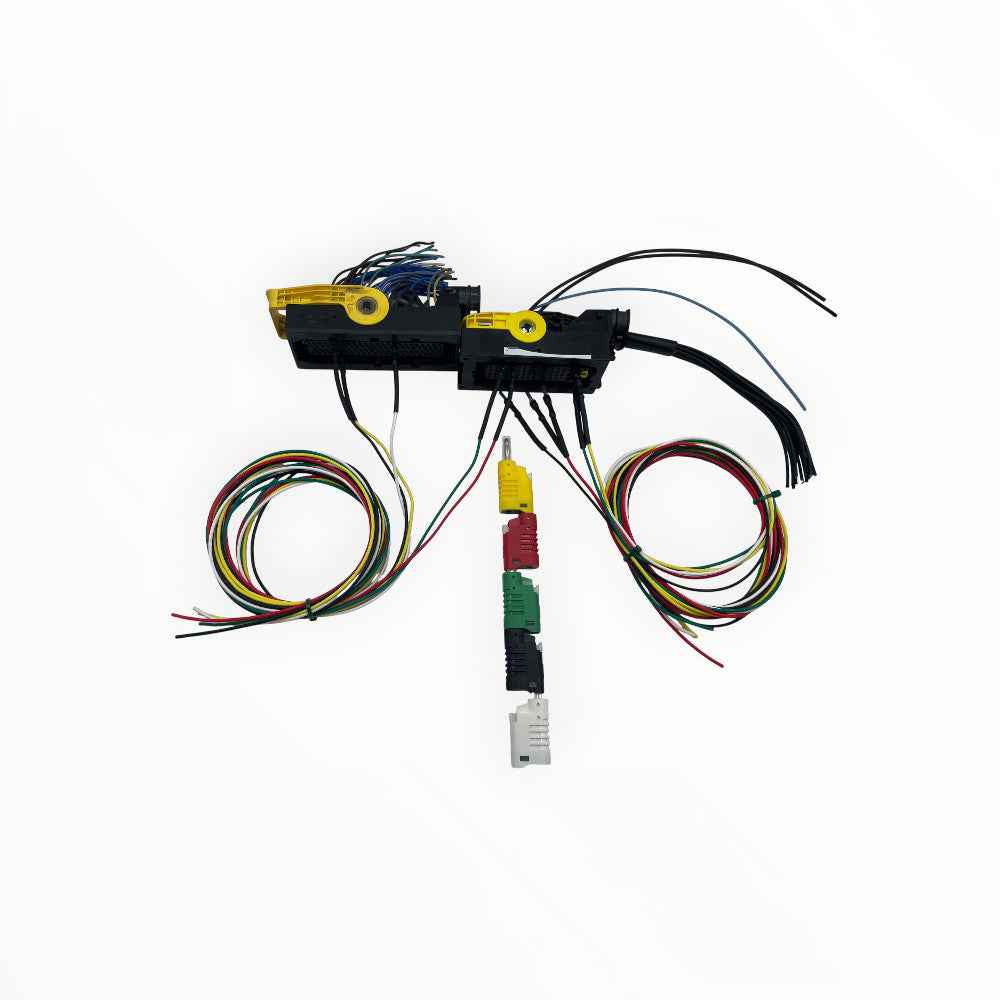

PACCAR MX13 Test Leads for ECM and Engine Harness Testing
The PACCAR MX13 Test Leads Kit supports both on-truck diagnostics and bench testing applications.
Each lead is supplied with approximately 5 feet of automotive-grade wire. Consequently, technicians have enough length to perform testing while the ECM remains connected to the engine harness.
Common uses include:
- ECM diagnostics
- Engine harness testing
- Voltage verification
- Power and ground testing
- Sensor circuit diagnostics
- Communication circuit testing
- Intermittent fault troubleshooting
- Circuit isolation and verification
For example, technicians can leave the leads at their full length when diagnosing circuits on a truck. Alternatively, the wires can be shortened and customized for dedicated bench testing setups.
Furthermore, the leads can be modified to fit custom breakout boxes, programming harnesses, power supplies, and specialized testing fixtures.

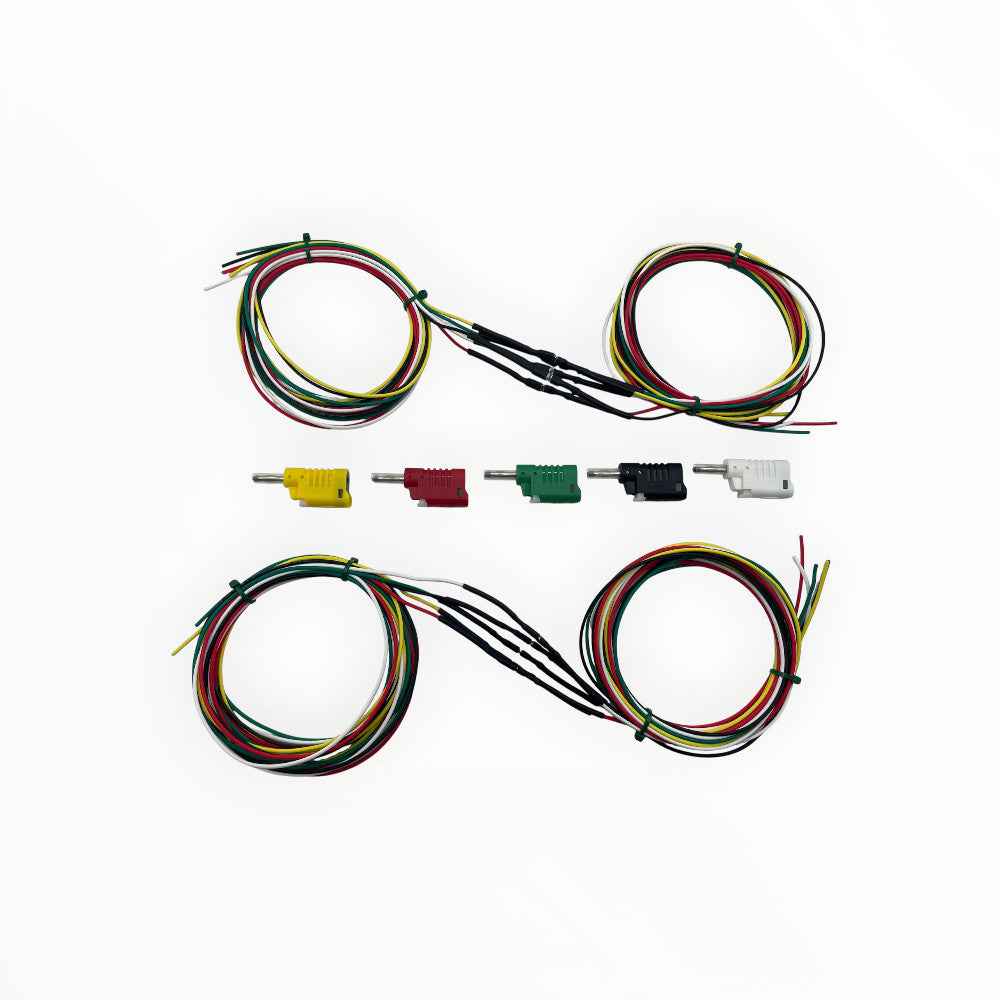

MX13 ECM Test Leads with Premium Stackable Banana Plug Sets
Every kit includes five premium stackable banana plug sets that are supplied separately and are not pre-installed.
Because the banana plugs are separate, technicians can first determine the desired wire length and then install the connectors afterward. This approach provides greater flexibility when creating custom diagnostic setups.
Features include:
- Stackable design
- Quick attachment capability
- Quick release functionality
- Professional-grade construction
- Compatible with standard test equipment
Additionally, the stackable design allows multiple test leads to share the same connection point. Therefore, monitoring multiple circuits becomes easier during advanced diagnostic procedures.
Compatible equipment includes:
- Digital multimeters
- Oscilloscopes
- Power supplies
- Breakout boxes
- ECM programming equipment
- Custom bench testing systems

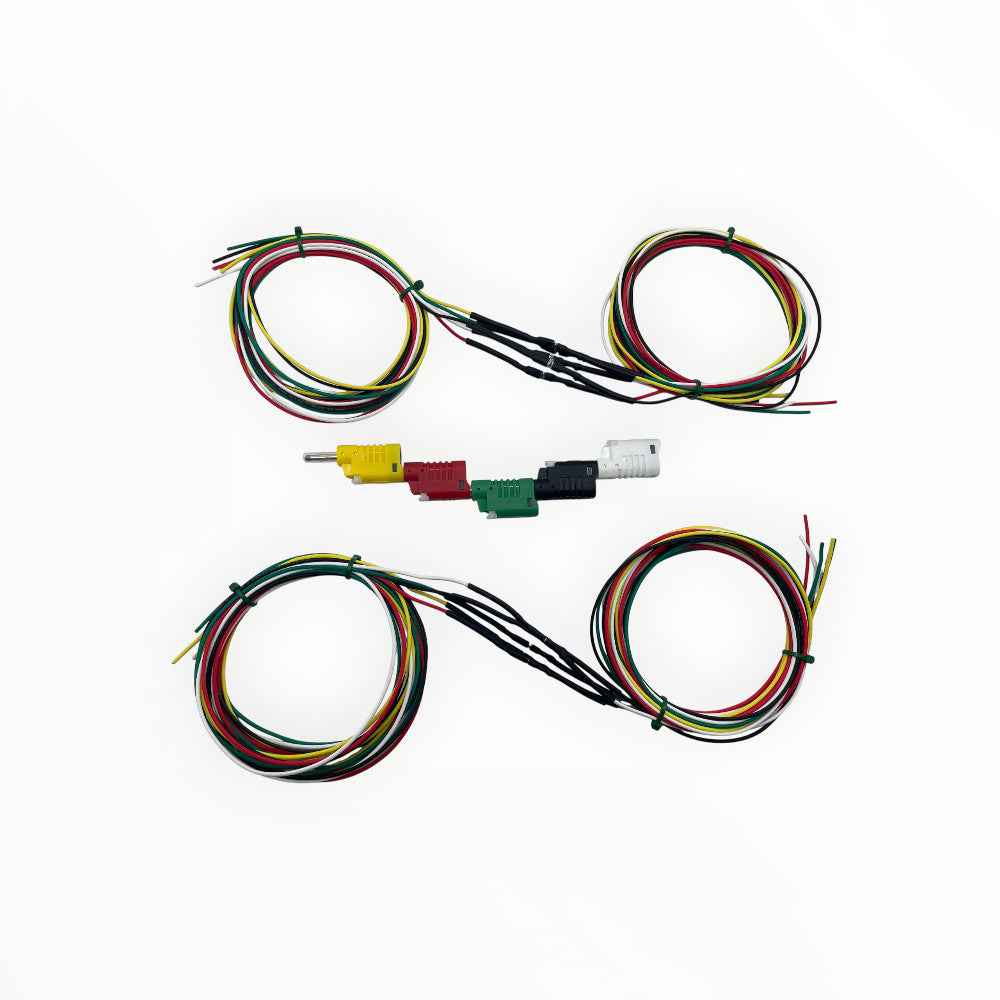

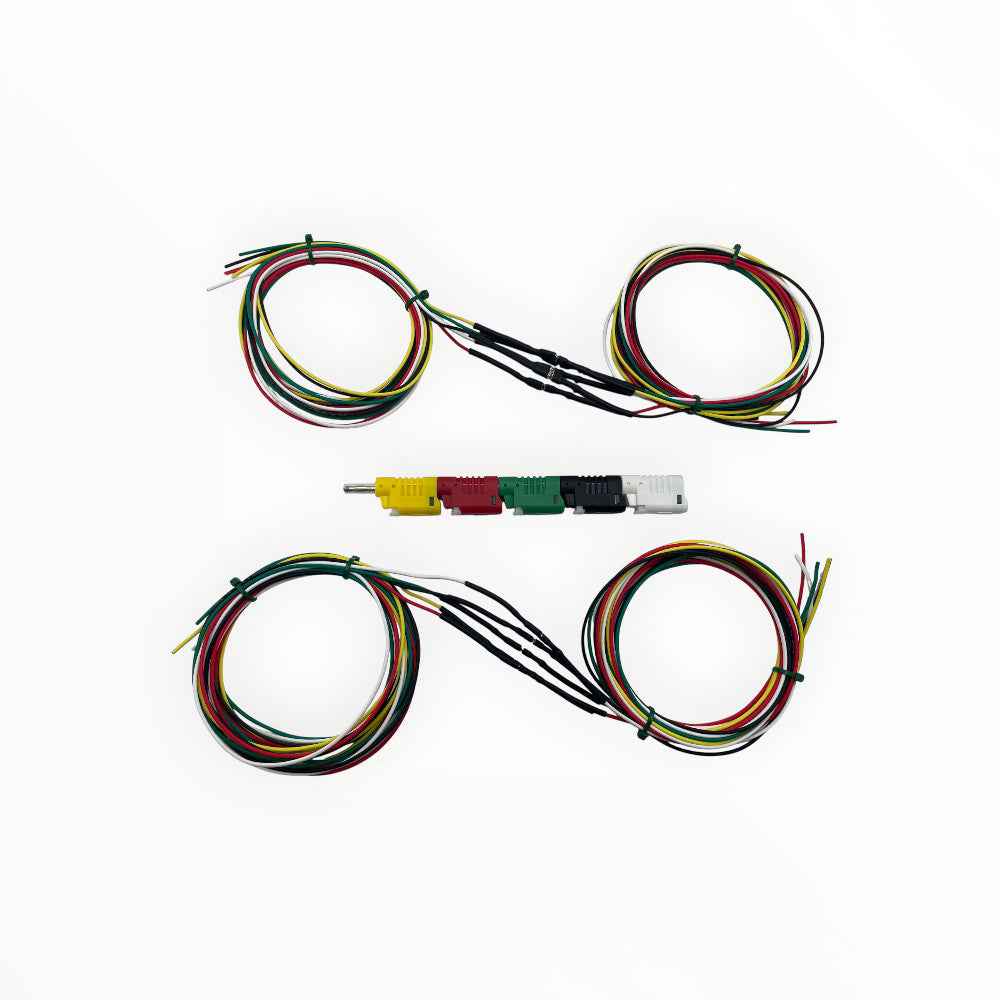

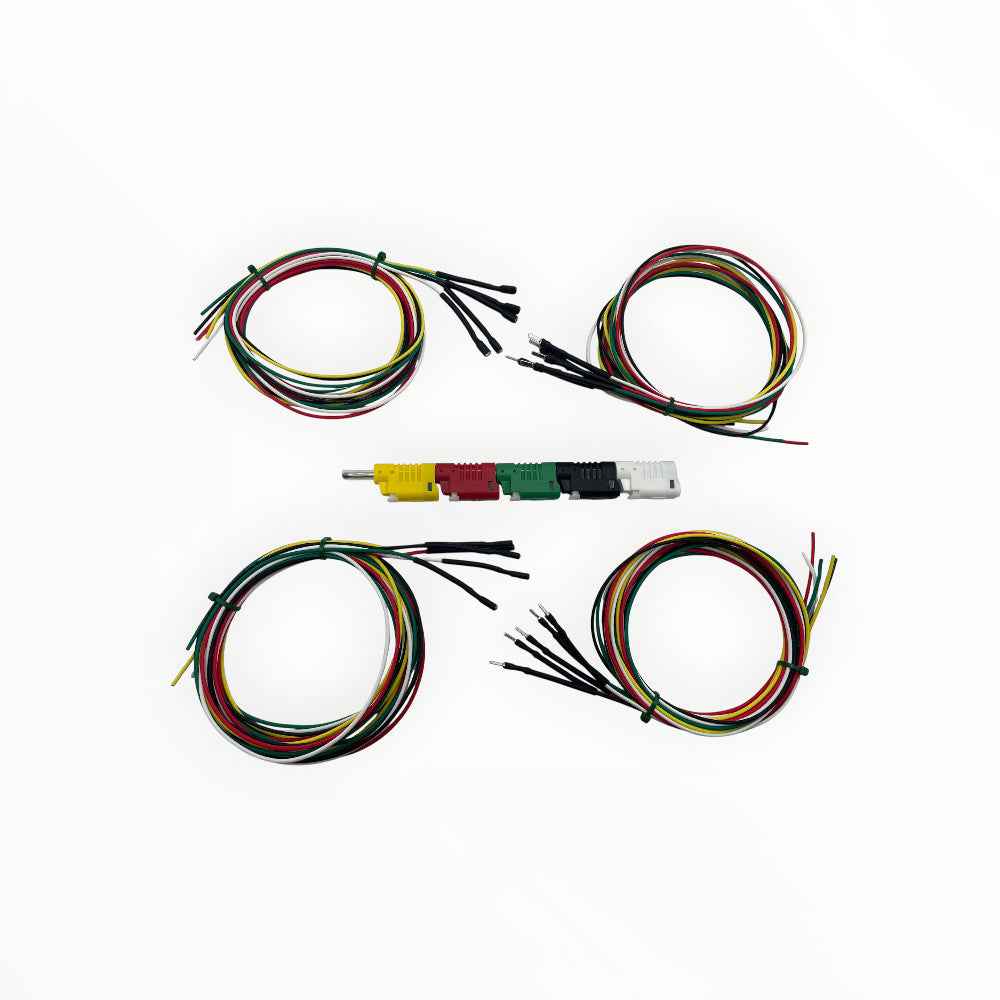

What's Included with the PACCAR MX13 Test Leads Kit
Each kit includes:
- 5 OEM-style PACCAR MX13 ECM diagnostic contacts
- 5-foot automotive-grade test leads
- 5 premium stackable banana plug sets (not installed)
Unlike pre-terminated leads, this configuration allows complete customization. As a result, the same kit can be used for field diagnostics, programming work, training environments, and custom test benches.
Compatible PACCAR MX13 ECM Applications
These diagnostic leads are designed for PACCAR MX13 engine applications commonly found in:
- Kenworth trucks
- Peterbilt trucks
- PACCAR MX13 engines
Accordingly, the kit is ideal for:
- Diesel repair facilities
- Fleet maintenance operations
- Mobile service technicians
- ECM programming services
- Engine rebuild shops
- Technical training programs
Moreover, the flexible design allows technicians to adapt the kit to a variety of testing environments and procedures.
Why Use OEM-Style MX13 ECM Test Leads?
Traditional testing methods often require back-probing connectors, piercing insulation, or forcing oversized probes into terminal cavities.
Unfortunately, those methods can create several problems:
- Damaged terminals
- Spread contacts
- Unreliable electrical connections
- Inaccurate readings
- Costly connector repairs
By comparison, OEM-style contacts are designed to properly fit the factory ECM connector. Consequently, technicians can obtain more reliable results while helping preserve connector integrity.
In addition, proper terminal engagement helps reduce the risk of intermittent test failures caused by poor probe contact.
PACCAR MX13 Diagnostic Lead Kit Features
✔ Designed specifically for PACCAR MX13 ECM applications
✔ OEM-style diagnostic contacts
✔ 5-foot lead length for on-truck testing
✔ Easily modified for bench testing
✔ Five premium stackable banana plug sets included
✔ Quick attachment and quick release capability
✔ Compatible with most diagnostic equipment
✔ Ideal for ECM and engine harness testing
✔ Helps prevent terminal damage
✔ Professional-grade diagnostic solution
Common Applications for PACCAR MX13 Test Leads
Technicians commonly use these PACCAR MX13 test leads for:
- ECM diagnostics
- Engine harness diagnostics
- On-truck testing
- ECM programming
- Bench testing
- Voltage measurements
- Sensor verification
- Power and ground validation
- Communication circuit analysis
- Electrical troubleshooting
Likewise, these diagnostic leads are useful after connector repairs, harness repairs, ECM replacements, and sensor replacements. Therefore, technicians can verify proper circuit operation before returning equipment to service.
Related PACCAR MX13 Diagnostic Products
Looking for additional PACCAR MX13 diagnostic and repair solutions? Consider these related products from Diesel Electronic Supply:
- PACCAR MX13 ECM Connector Repair Kit
- PACCAR MX11 ECM Connector Repair Kit
- CPC4 Quick Release Mini™
- ECM Cores
- Diesel ECM Connector Repair Kits
Together, these products help support diagnostics, repairs, programming, and custom bench testing applications.
Why Choose Diesel Electronic Supply for PACCAR MX13 ECM Testing?
Diesel Electronic Supply specializes in diesel engine electronics, connector repair solutions, custom harness assemblies, and professional diagnostic tools.
Additionally, our products are designed around real-world service requirements encountered by diesel technicians and fleet maintenance personnel. As a result, customers receive practical solutions that improve efficiency and reduce downtime.
Furthermore, the included stackable banana plug sets allow technicians to customize the kit for their preferred testing equipment. Likewise, the 5-foot lead design provides flexibility for both mobile diagnostics and dedicated bench testing environments.
Moreover, technicians can shorten, modify, or reconfigure the leads as their testing requirements evolve. Ultimately, the goal is to provide a reliable diagnostic tool that remains flexible, reusable, and easy to integrate into existing workflows.
Important Notice
Before ordering, please review the following information:
- PACCAR MX13 ECM NOT INCLUDED
- Engine Harness NOT INCLUDED
- Multimeter NOT INCLUDED
- Oscilloscope NOT INCLUDED
- Power Supply NOT INCLUDED
- Diagnostic Equipment NOT INCLUDED
- Banana Plug Sets Included but Not Pre-Installed
Therefore, this listing includes only the PACCAR MX13 Test Leads Kit and the components described above.
