Komatsu 22M-06-23-200 Monitor Connector Pigtail Repair Kit

Komatsu 22M-06-23-200 Monitor Connector Pigtail Repair Kit

The Komatsu 22M-06-23-200 Monitor Connector Pigtail Repair Kit repairs damaged or corroded monitor harness connectors in Komatsu heavy equipment.

If your monitor connector is cut, corroded, or failing, this kit gives you a reliable and cost-effective fix. Instead of replacing the entire harness, you can repair the connector and restore proper operation faster.

Common Search Terms

If you’re searching for the following, this kit fits your needs:

• Komatsu 22M-06-23-200 pigtail
• Komatsu monitor connector repair kit
• Komatsu display monitor wiring harness
• Komatsu monitor plug replacement
• Komatsu 22M0623200 connector repair

Designed for Komatsu Monitor Applications

This kit works with Komatsu monitor systems using part number 22M-06-23-200, so it supports proper display operation and communication.

However, when the connector becomes damaged, it can cause:

• Monitor power loss
• Communication faults
• Intermittent display issues
• Error messages

Because of this, this pigtail lets you replace only the connector. As a result, you avoid a full harness replacement and reduce downtime.

What’s Included

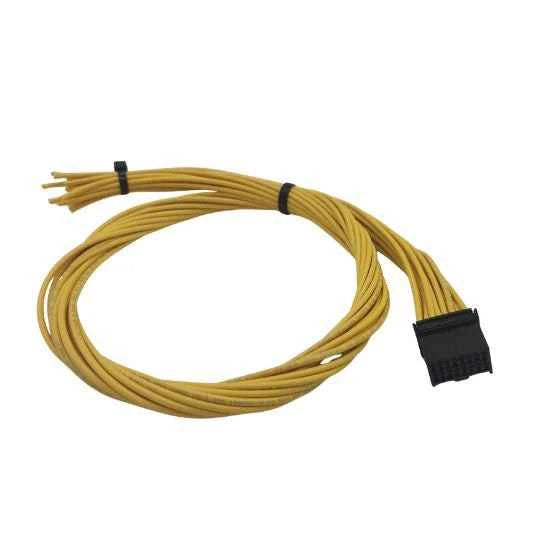

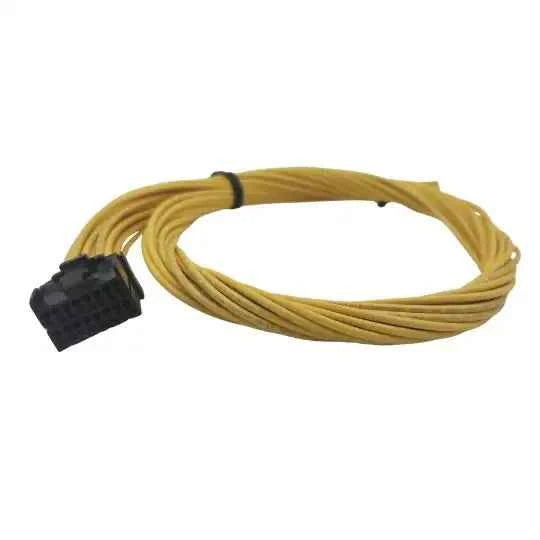

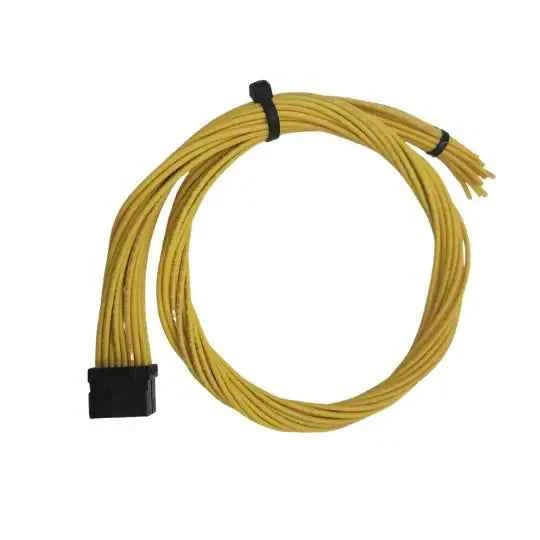

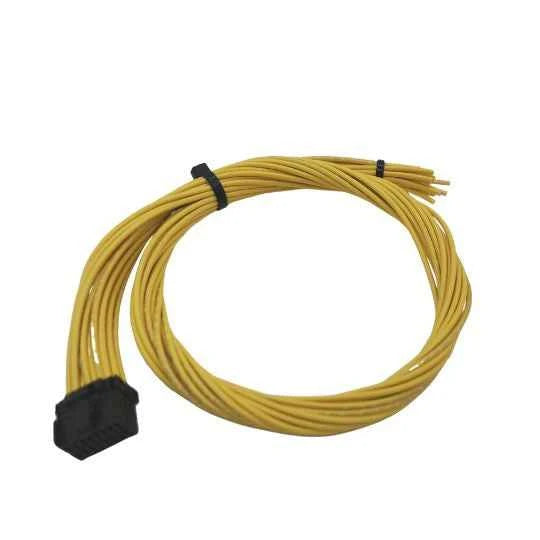

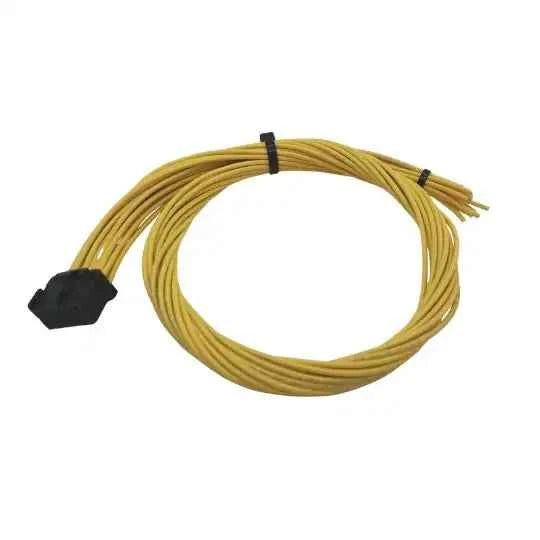

• (1) Fully populated connector with 12" leads (pigtail)

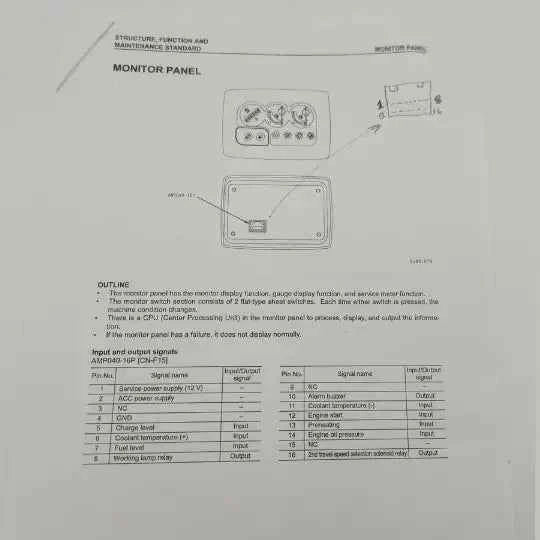

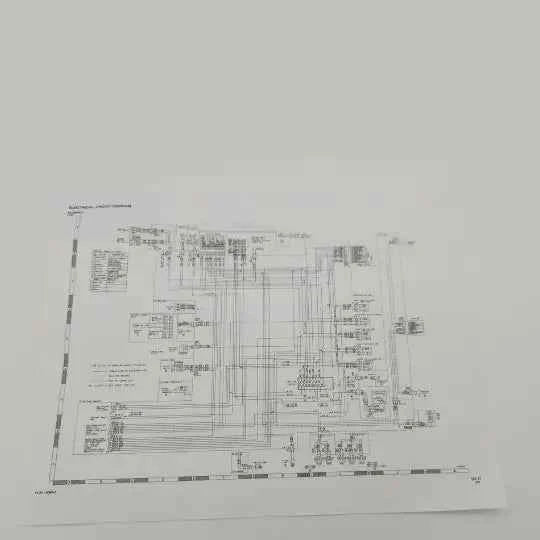

• (1) Schematic printout
• (1) Monitor pin-out printout

Together, these components provide a complete connector repair solution. In addition, the pre-populated connector simplifies installation. Therefore, you can complete the repair with less guesswork.

Built for Heavy Equipment Conditions

Komatsu equipment runs in demanding environments, including:

• Vibration
• Dust
• Moisture
• High temperatures

Because of this, this pigtail is built to handle harsh conditions. At the same time, it restores stable electrical communication between the harness and monitor.

Key Features

• Fits Komatsu P/N 22M-06-23-200
• Fully populated 12" pigtail leads
• Includes schematic and pin-out documentation
• Eliminates the need for full harness replacement
• Designed for monitor repair applications

Ideal For

• Heavy equipment technicians
• Construction equipment maintenance teams
• Komatsu service providers
• Field repair applications

Important Note

⚠️ This kit repairs the monitor connector portion only
❌ Monitor unit and full harness are not included
